Beskrivning
| Code | No. | A

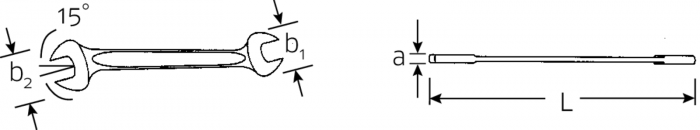

" | Size 1 [inch] | Size 2 [inch] | Size | L mm | b1 mm | b2 mm | a mm | Offset angle | R
g | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40431620 | 10a | 1/4 x 5/16 | 1/4 " | 5/16 " | 1/4 x 5/16 | 140 | 16 | 18 | 4 | 15 ° | 21 | Buy online |
| 40432024 | 10a | 5/16 x 3/8 | 5/16 " | 3/8 " | 5/16 x 3/8 | 140 | 18 | 23 | 4,5 | 15 ° | 34 | Buy online |
| 40432428 | 10a | 3/8 x 7/16 | 3/8 " | 7/16 " | 3/8 x 7/16 | 155 | 23 | 26 | 4,8 | 15 ° | 48 | Buy online |
| 40432832 | 10a | 7/16 x 1/2 | 7/16 " | 1/2 " | 7/16 x 1/2 | 170 | 26 | 30 | 5,3 | 15 ° | 58 | Buy online |
| 40433234 | 10a | 1/2 x 9/16 | 1/2 " | 9/16 " | 1/2 x 9/16 | 190 | 30 | 32 | 5,3 | 15 ° | 73 | Buy online |
| 40433436 | 10a | 9/16 x 5/8 | 9/16 " | 5/8 " | 9/16 x 5/8 | 205 | 32 | 36 | 5,8 | 15 ° | 96 | Buy online |
| 40433538 | 10a | 19/32 x 11/16 | 19/32 " | 11/16 " | 19/32 x 11/16 | 205 | 35 | 40 | 5,8 | 15 ° | 105 | Buy online |
| 40433638 | 10a | 5/8 x 11/16 | 5/8 " | 11/16 " | 5/8 x 11/16 | 205 | 36 | 40 | 5,8 | 15 ° | 101 | Buy online |
| 40433640 | 10a | 5/8 x 3/4 | 5/8 " | 3/4 " | 5/8 x 3/4 | 220 | 36 | 42 | 6,7 | 15 ° | 135 | Buy online |
| 40433840 | 10a | 11/16 x 3/4 | 11/16 " | 3/4 " | 11/16 x 3/4 | 220 | 40 | 42 | 6,7 | 15 ° | 135 | Buy online |
| 40433842 | 10a | 11/16 x 13/16 | 11/16 " | 13/16 " | 11/16 x 13/16 | 235 | 40 | 47 | 7,3 | 15 ° | 167 | Buy online |
| 40434044 | 10a | 3/4 x 7/8 | 3/4 " | 7/8 " | 3/4 x 7/8 | 235 | 42 | 49 | 7,3 | 15 ° | 177 | Buy online |
| 40434142 | 10a | 25/32 x 13/16 | 25/32 " | 13/16 " | 25/32 x 13/16 | 235 | 45 | 47 | 7,3 | 15 ° | 190 | Buy online |
| 40434446 | 10a | 7/8 x 15/16 | 7/8 " | 15/16 " | 7/8 x 15/16 | 250 | 49 | 53 | 7,8 | 15 ° | 235 | Buy online |
| 40434648 | 10a | 15/16 x 1 | 15/16 " | 1 " | 15/16 x 1 | 270 | 53 | 55 | 8,3 | 15 ° | 270 | Buy online |
| 40435258 | 10a | 1 1/8 x 1 5/16 | 11/8 " | 15/16 " | 11/8 x 15/16 | 300 | 64 | 75 | 9,4 | 15 ° | 502 | Buy online |
